Emergency Energy Products Ltd. offers a wide range of emergency power solutions. Our made-to-order manual transfer switches, automatic transfer switches and connection boxes, manufactured using components from ABB and Socomec, come in amperages ranging from 100A-1200A and voltages from 208V to 600V, with fusing available for select models.
The E100 is a heavy duty manual transfer switch built using the Socomec SIRCOVER manual transfer switch. They ensure transfer of sources or transfer of two low voltage circuits on load as well as their safe disconnection.
| Amperage | Poles | Voltage | Standard / Fused WCR |
|---|---|---|---|
| 100A 150A 200A 225A 400A | 2, 3, 4 | 208V 240V 416V 480V 600V | Standard (un-fused): 100A–200A: 10kA 225A–400A: 14kA 600A–1200A: 35kA Fused: Not Available |
| 600A 800A 1000A 1200A | 3, 4 | ||
The E200 Series ATS is built using the Socomec ATyS motorized automatic transfer switch; the ATyS ATS is built for standard applications requiring the dependability and ease of operation found in a motorized contactor switch.
| Amperage | Poles | Voltage | Standard / Fused WCR |
|---|---|---|---|
| 100A 150A 200A | 2, 3, 4 | 208V 240V 416V 480V 600V | Standard: 10kA Fully Fused: 100kA Fused on Normal: 100kA, 10kA on Emergency |
| 225A 400A | 2, 3, 4 | Standard: 14kA Fully Fused: 65kA Fused on Normal: 65kA, 14kA on Emergency | |
| 600A | 2, 3 | Standard: 35kA Fully Fused: 100kA Fused on Normal: 100kA, 35kA on Emergency | |
| 600A | 4 | Standard: 35kA Fused: Not Available | |
| 800A 1000A 1200A | 3, 4 | Standard: 35kA Fused: Not Available |

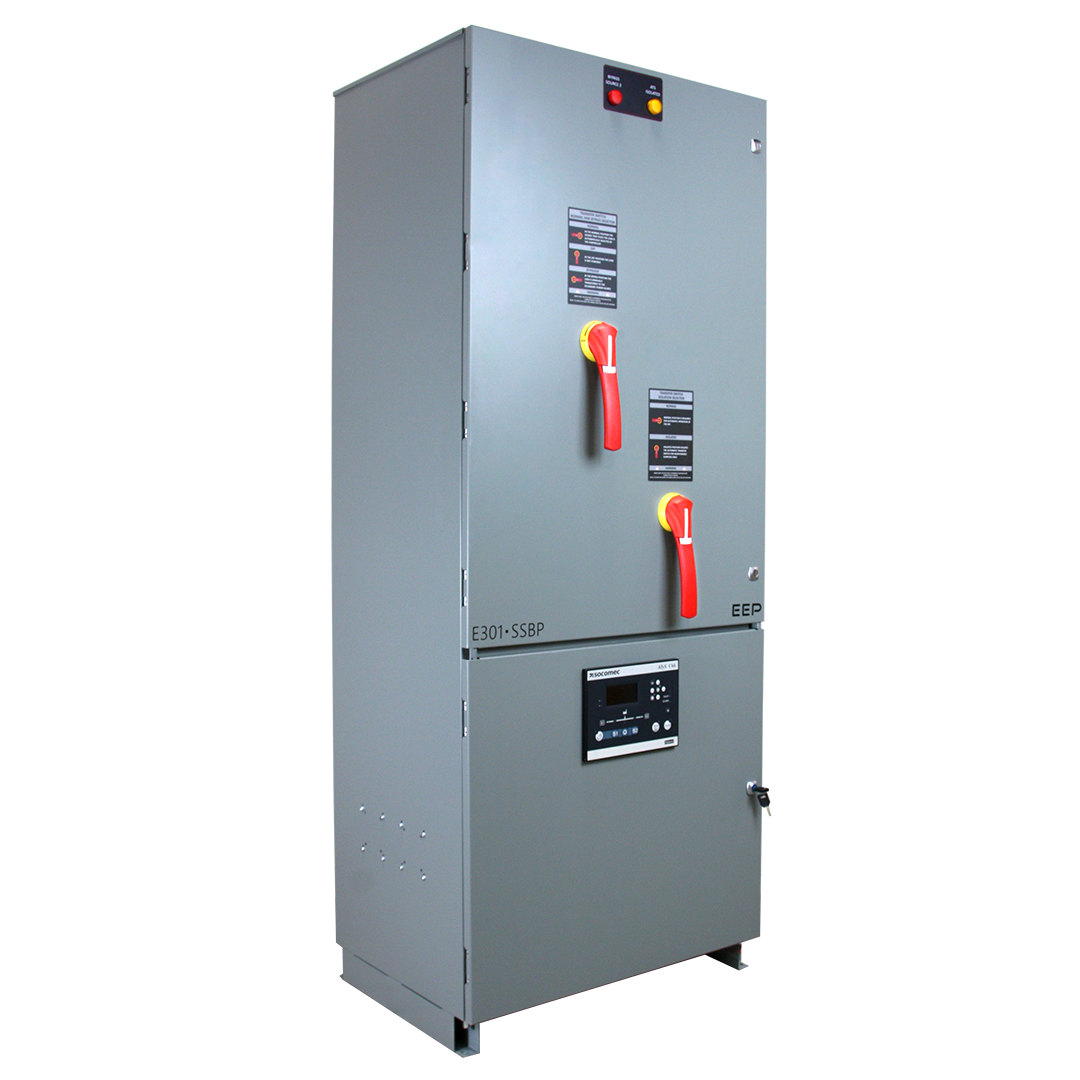

The E301 Series ATS, built with the Socomec ATyS motorized automatic transfer switch, features a double-throw, mechanically interlocked contactor mechanism with single-sided bypass/isolation on emergency.

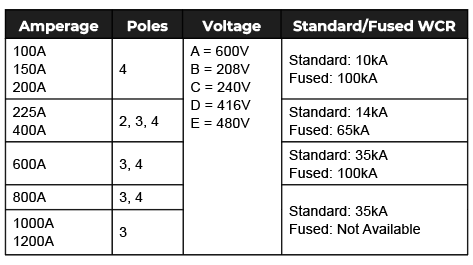

| Amperage | Poles | Voltage | Standard / Fused WCR |
|---|---|---|---|
| 100A 150A 200A | 4 | 208V 240V 416V 480V 600V | Standard: 10kA Fully Fused: 100kA Fused on Normal: 100kA, 10kA on Emergency |
| 225A 400A | 2, 3, 4 | Standard: 14kA Fully Fused: 65kA Fused on Normal: 65kA, 14kA on Emergency | |
| 600A | 3, 4 | Standard: 35kA Fully Fused: 100kA Fused on Normal: 100kA, 35kA on Emergency | |
| 800A | 3, 4 | Standard: 35kA Fused on Normal: 100kA, 35kA on Emergency | |
| 1000A 1200A | 3 | Standard: 35kA Fused: Not Available |
The E313 Series ATS with Single-Sided Bypass/Isolation is built using the ABB OTM motorized automatic transfer switch. It has a 74% smaller footprint than the E301 Series model equivalent, making it perfect for retrofits, smaller spaces and easier transportation.
| Amperage | Poles | Voltage | Standard / Fused WCR |
|---|---|---|---|
| 100A 150A 200A | 2, 3 | 208V 240V 416V 480V 600V | Standard: 10kA Fully Fused: 100kA Fused on Normal: 100kA, 10kA on Emergency |
The E302 Series is a single-sided bypass/isolation on emergency ATS built using the ABB TruONE automatic transfer switch.

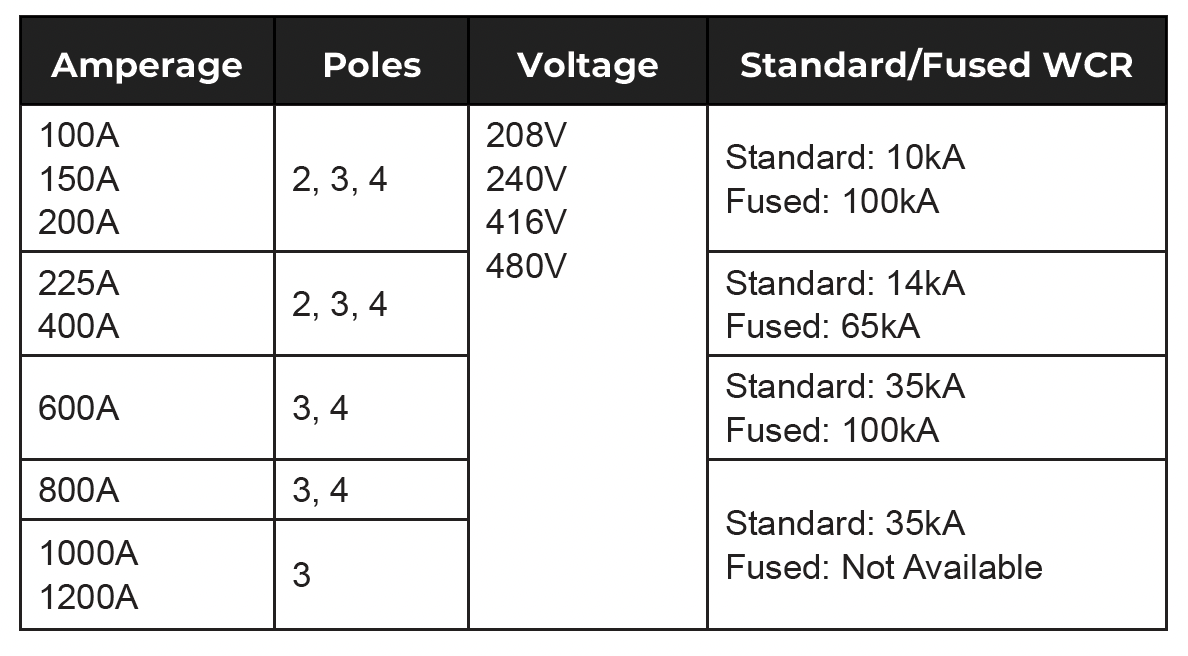

| Amperage | Poles | Voltage | Standard / Fused WCR |
|---|---|---|---|
| 100A 150A 200A | 4 | 208V 240V 416V 480V | Standard: 10kA Fully Fused: 100kA Fused on Normal: 100kA, 10kA on Emergency |
| 225A 400A | 2, 3, 4 | Standard: 14kA Fully Fused: 65kA Fused on Normal: 65kA, 14kA on Emergency | |
| 600A | 3, 4 | Standard: 35kA Fully Fused: 100kA Fused on Normal: 100kA, 35kA on Emergency | |
| 800A | 3, 4 | Standard: 35kA Fused on Normal: 100kA, 35kA on Emergency | |
| 1000A 1200A | 3 | Standard: 35kA Fused: Not Available |

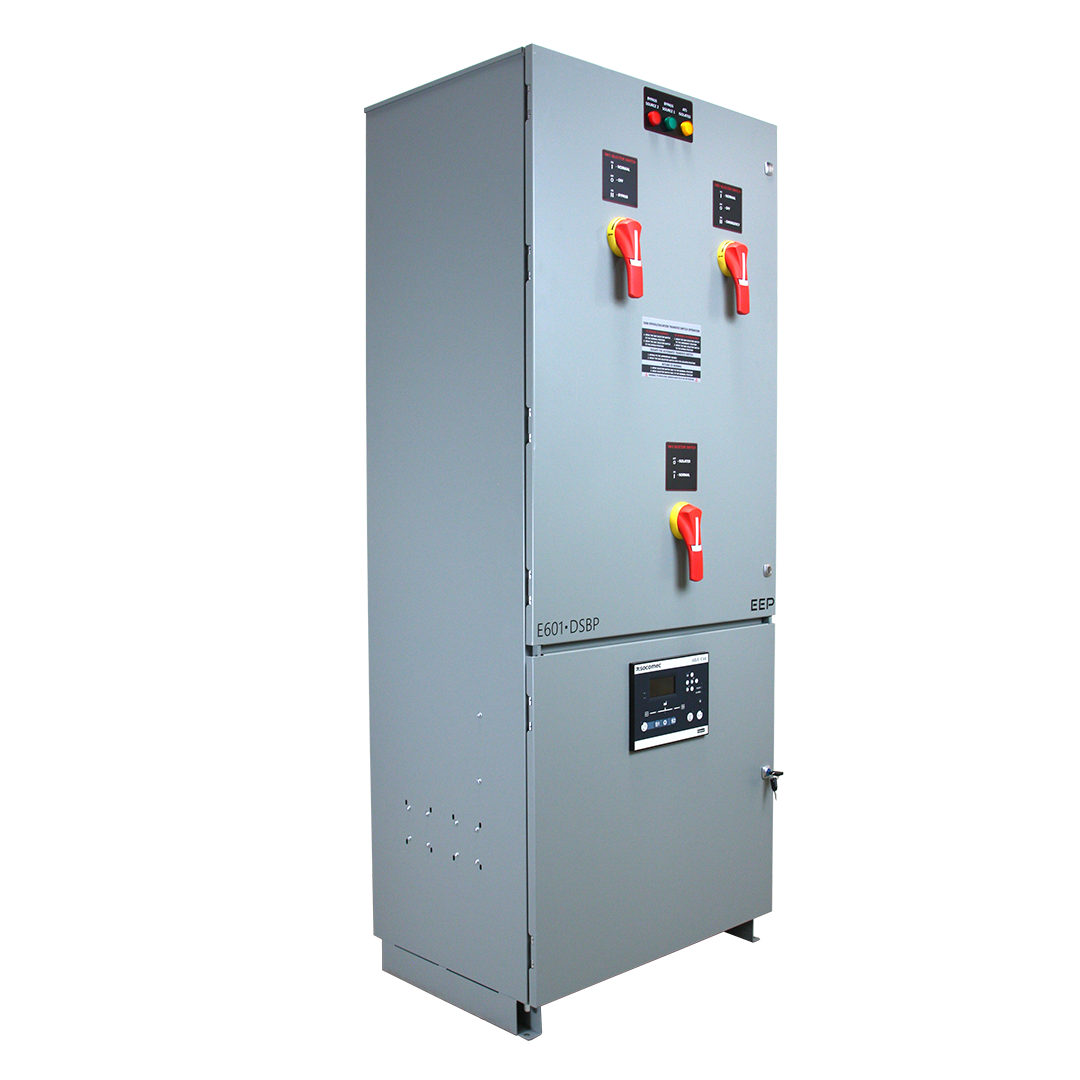

The E601 Series ATS, built with the Socomec ATyS motorized contactor automatic transfer switch, provides reliable and efficient operation for emergency and standby applications. It is equipped with a doublesided bypass/isolation on utility and emergency and is designed for ease of use and dependability in critical power transfer scenarios.
| Amperage | Poles | Voltage | Standard / Fused WCR |
|---|---|---|---|
| 100A 150A 200A | 2, 3, 4 | 208V 240V 416V 480V 600V | Fully Fused: 100kA Fused on Normal: 100kA, 10kA on Emergency |
| 225A 400A | 2, 3, 4 | Fully Fused: 65kA Fused on Normal: 65kA, 14kA on Emergency | |
| 600A 800A | 3, 4 | Fully Fused: 100kA Fused on Normal: 100kA, 35kA on Emergency |
The E602 Series ATS is equipped with a double-sided bypass/isolation on utility and emergency and is built using the ABB TruONE automatic transfer switch.
| Amperage | Poles | Voltage | Standard / Fused WCR |
|---|---|---|---|
| 100A 150A 200A | 2, 3, 4 | 208V 240V 416V 480V | Fully Fused: 100kA Fused on Normal: 100kA, 10kA on Emergency |
| 225A 400A | 2, 3, 4 | Fully Fused: 65kA Fused on Normal: 65kA, 14kA on Emergency | |
| 600A 800A | 3, 4 | Fully Fused: 100kA Fused on Normal: 100kA, 35kA on Emergency |

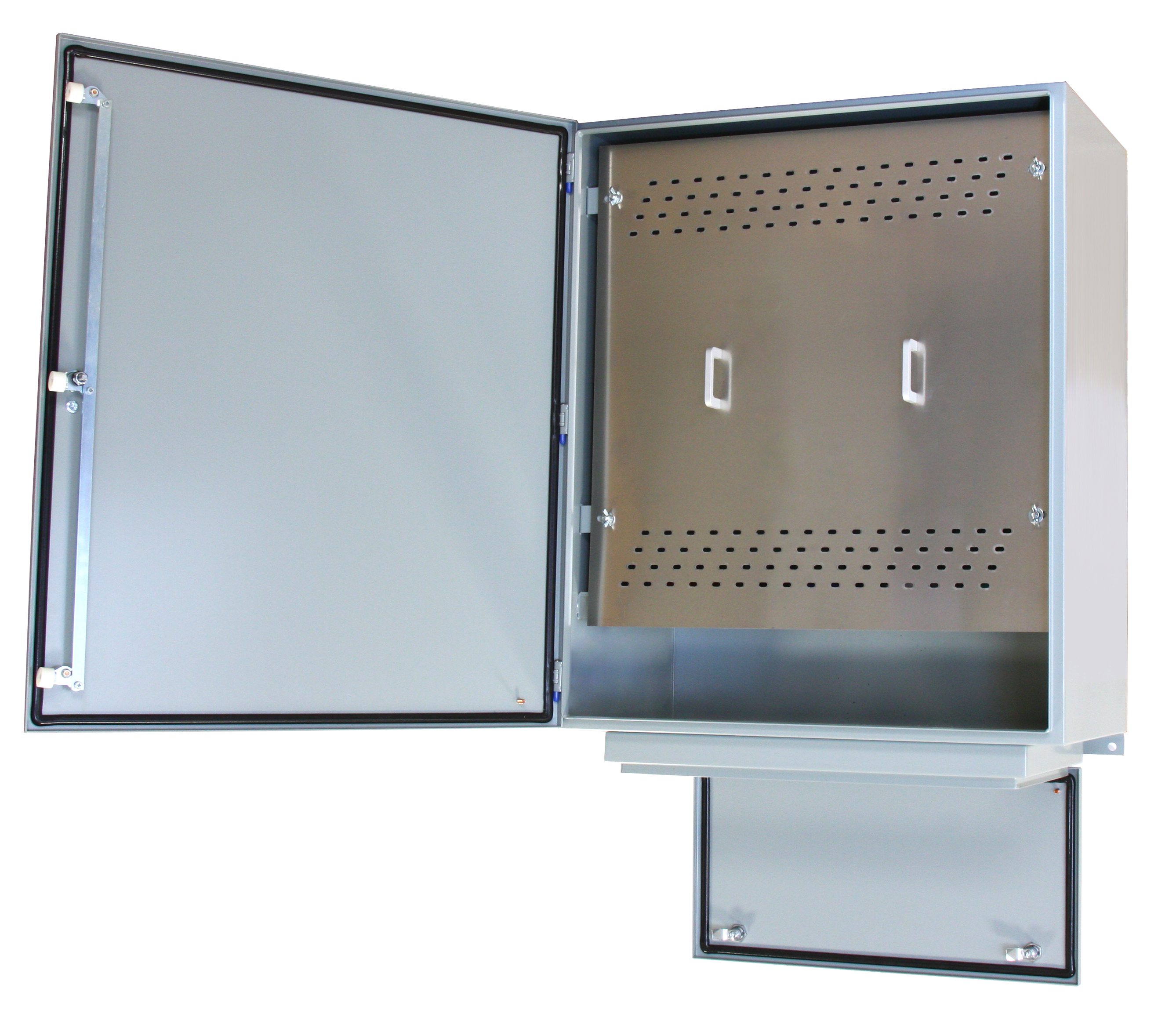

The E700 Series of quick connect connection boxes provides a quick and affordable way to connect external resources to your emergency power system for load testing or mobile power generation.
The E700 load bank connection box offers female camlock quick connects designed for use with temporary load banks for the load testing of your emergency power system.
The E701 generator connection box offers male camlock quick connects designed for use with mobile generators to temporarily replace or augment permanent power generation.
The E704-G connection box is designed for mobile generators but in addition to the features of the E701, the E704 adds an MTS. The E704-G is equipped with male camlock quick connects for temporary connections and mechanical lugs for permanent connections.
Visit our "Request a Quote" page to learn more about the pricing for each of our products. Alternatively, you can reach out via our contact us form.
